Dual Ring Main Pumps
Commercial quality dual ring main pump sets
plumbonline offer the commercial quality dual ring main pump sets suitable for both commercial and larger domestic applications, ensuring seamless delivery of hot water through a ring main configuration.

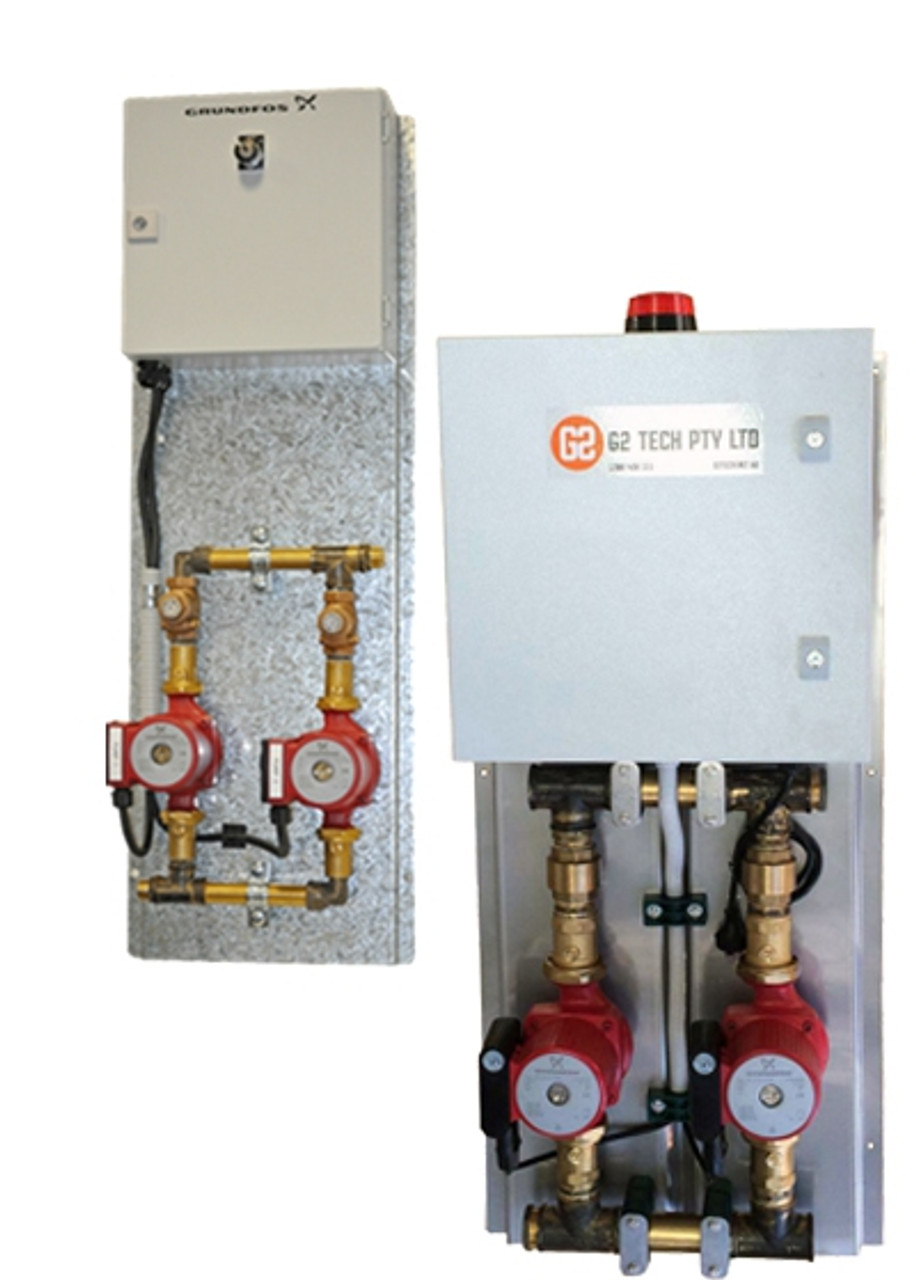

The G2 Tech dual domestic hot water ring main pump-set is a packaged system comprising of two Grundfos pumps, plumbed in parallel with the operation of the two pumps electronically controlled. Pump failure will initiate operation of the second (stand-by) pump automatically and the control cabinet will alert the building of the pump fault. This will be done via the BMS (when fitted) and using a visual strobe located on top of the control cabinet. The faulty pump can then be replaced without any interruption to the hot water supply to the facility. Dual handed installation available on all G2 TECH models
The Grundfos Rediset dual domestic hot water ring main pump-set is a pre engineered system comprising of two Grundfos pumps manifolded together to provide duty/standby timed operation. Suitable for both commercial and larger domestic applications it ensures seamless delivery of hot water through a ring main configuration.
