DAB Pumps 62M JETCOM Pressure Water Pump

$299.00
  • DAB Pumps JETCOM Pressure Water Pump 62M

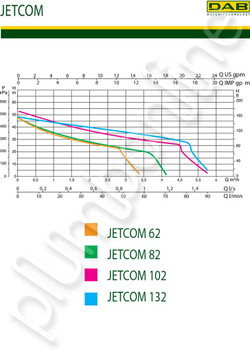

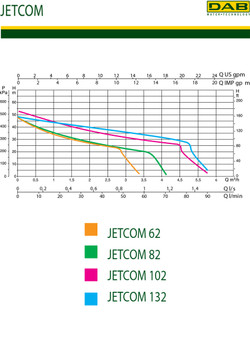

  • DAB Pumps JETCOM Pressure Water Pump 62M - Pump Curve
  • DAB Pumps JETCOM Pressure Water Pump 62M - Specification
  • DAB Pumps Two Year Warranty

DAB Pumps 62M JETCOM Pressure Water Pump

$299.00
Brand:
SKU:
JCOM62M
Weight:
7.50 KGS
Shipping:
Calculated at checkout
FreeShipping! TC's Apply
Quantity:

Product Description

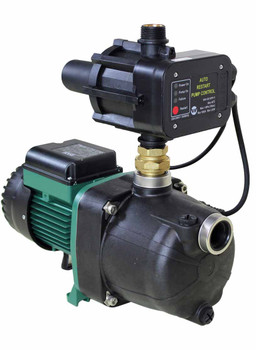

DAB Pumps JETCOM Pressure Water Pump 62M

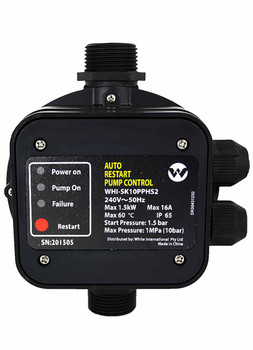

The Jetcom is a composite, compact, self-priming, jet assisted pressure boosting system. The Jetcom is suitable for small domestic applications and for pressure boosting from above ground tanks and below groundwater sources. The Jetcom requires a control device for automatic operation please see our range of Automatic Pump Controllers and packaged units.

DAB Pressure Pump Features

  • Made from durable composite housing

  • The Jetcom is a manual operation pump

Operating Conditions

  • System pressure
    • Max. 6 bar (600 kPa)
  • Liquid temperature
    • 0˚C to +35˚C
  • Maximum ambient temperature
    • 0˚C to +35˚C for domestic use
    • 0˚C to +40˚C for other use
  • Maximum suction depth
    • 8 metres

Construction Specification

  • Materials
    • Cast iron motor support
    • Technopolymer pump body, impeller, diffuser and venturi tube
    • Stainless steel pressure disc
    • Carbon / ceramic mechanical seal
  • Voltage
    • 1 x 240 V, 50 Hz
  • Protection level
    • IP44 (IP55 terminal board protection)
  • Insulation class
    • F
