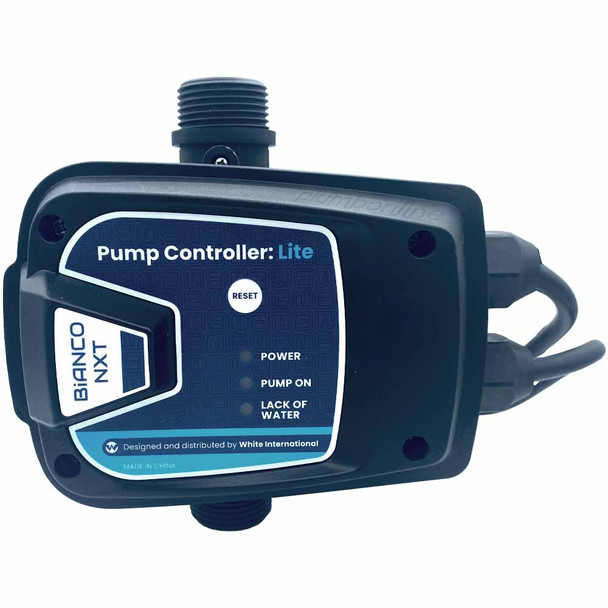

Bianco NXT BIA Lite Pump Controller Automatic Start Stop with Dry Run Protection PN. 811998
Looking for a reliable automatic pump controller that just works? At plumbonline, we supply the Bianco NXT BIA Lite Pump Controller, designed for automatic pump start and stop with built-in dry run protection. A proven choice for plumbers and installers, it’s ideal for domestic pressure systems, rainwater pumps and general water transfer applications.
What do you get?
- 1 x Bianco NXT BIA Lite Pump Controller Automatic Start Stop with Dry Run Protection
- PN. 811998
- Important: Please confirm controller suitability, pump size and connection size before ordering
- FREE delivery to your door!
Key Features & Technical Specifications
- Automatic pump controller for domestic pressure, rainwater and water transfer systems
- Input voltage: 220 to 240V AC, 1 phase
- Maximum current: 10 amps
- Motor size: up to 1.5kW
- Maximum working pressure: 10 bar
- Maximum rated flow: 70L/min
- Default start pressure: 2.2 bar, adjustable from 0.9 to 2.8 bar
- Port size inlet: 1" BSPM inlet
- Port size outlet: 1" BSPM fixed outlet
- Ingress protection rating: IP55
- Power cable: 1.5 metre PVC cable with 10 amp plug
- Maximum working temperature: 35°C
- Integrated analogue pressure gauge for real time system pressure indication
- Dry run protection with automatic restart function
- No reactive metal parts in contact with water
- Casing material: technopolymer
- Weight: 1.2kg
- Suitable for pressure boosting, household water supply, irrigation, washing systems and water transfer
- AS/NZS 4020 drinking water approved
