Description

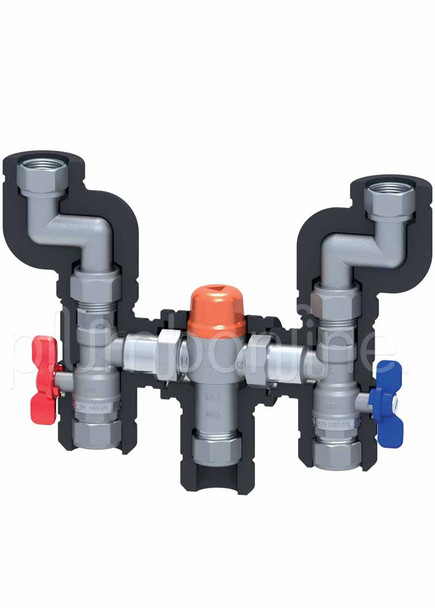

The Quickie 506 20mm Quick Continuous Flow Kit is a universal manifold kit, designed to make installing a tempering valve on a Instantaneous Hot water system quick and simple, with all the necessary valves, fittings and insulation to cover, saving the plumber substantial time and therefore money.
Quickie 506 Features
- High performance tempering valve suitable for solar & continuous hot water systems.
- Swivels from 83mm to 223mm.
- Hot water connection height adjustable by 10mm.
- Gas valve included.
- Factory set at 50°C (must be commissioned onsite by installer).
- Water Mark Certification – License No. 20137.
QUICKIE 506 QUICK CONTINUOUS FLOW KIT The Quickie 506 kit comes with swivel connector fittings to pick up differing positions for hot and cold water connections. Because different brands of Instantaneous hot water systems have different connection positions, and not all connections are level, with this in mind AVG have designed the swivel connection fitting with a telescopic height adjustable connection, to make the manifold kits level. The Quickie 506 also offers the option of an untempered line. Long runs of hot water pipe to the kitchen result in “not hot enough” hot water which is resolved by using the option of an untempered line. The Quickie 506 also comes with a solar high-performance tempering valve and loose nut gas ball valve to make the job simple and easy to assemble, with everything you need in the one box. 505 Kits available.
