Description

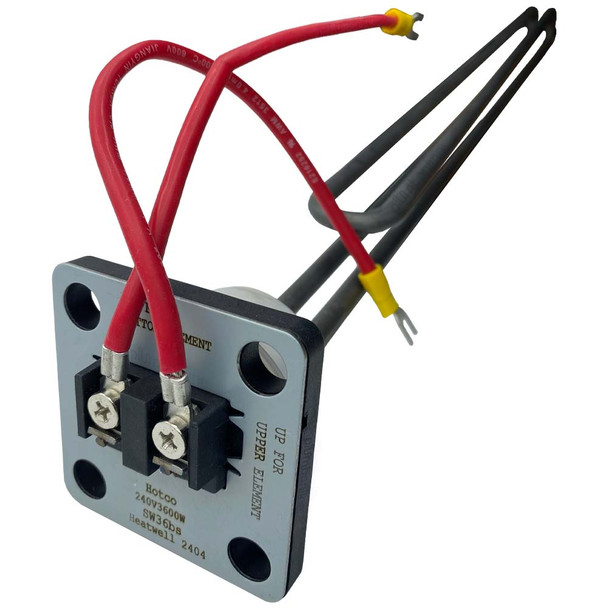

Element Incaloy Low Watt Density Straight 3.6kW
plumbonline have sourced a range of hot water heating elements in all the popular models, even the hard to come by variants. We ship free to your door, straight or sickle in copper, incaloy or duraloy.
Why choose an Incoloy Element?
Superalloys, also known as high performance alloys, have become the steel of choice for corrosion resistance and versatility providing;
- Good corrosion resistance in hard water environments
- Excellent strength resistance in high-temperature settings
- Excellent oxidation resistance in high-temperature settings
When combined with low watt density output you have a perfect combination of efficient energy distribution in a resilient long-life element. With a marginal increase in upfront cost you can have your element do the job its meant too rather than becoming another sacrificial anode* in your tank. Reduce your service costs and increase your efficiency and check out our Incoloy range at plumbonline today.
Heating Element Specification
- 3600watts 3.6kW
- Straight Incaloy Low Watt Density comes with insulated connection leads and rubber sealing gasket
- Suits Most Hot water systems Rheem , Dux , Aquamax , Rinnai
Incaloy–Hard Water
For use in extreme water hardness conditions -Bore water or Hard water towns supplies.
Why Incaloy?
Dissolved minerals (such as salt, calcium & lime) in the water supply can result in scale (like that found in a well used kettle which sometimes comes loose & end up in your coffee) building up on a water heating element. Where these concentrations are high, this will considerably shorten the life of the element. Stainless steel alloys such as Incaloy (800 & 825) are resistant to this scale build are used to extend element life in hard water areas.
Why Low Watt Density?
Low-Watt Density electric heating element has a much larger surface area transferring heat to water in the tank. This spreads out the distribution of wattage. For example, each square cm of a 4800-watt low-watt density element is conducting less electrical energy than its high-watt density counterpart. As a result, a low-watt density element operates more efficiently and lasts longer, because its surface simply doesn’t have to work as hard.
(All hard wired electrical items must be installed by a licensed electrician)
If you are not 100% sure if this is the correct part for your model, please send your model number to us via email and we will confirm or correct your selection.
Suitable for the following makes and manufacture;
Edson Dairy Water Heaters (Copper or Stainless Steel) DH / DHR / DH / DHRF (reverse flow)
DH-315 DH-400 DH-500 DH-630 DH-800
DHSA-450 DHSA-550 DHSA650 DHSA-800 DHSA-1000
DHRF-315 DHRF-450 DHRF-550 DHRF-650 DHRF-800 DHRF-1000 DHRF-1250 DHRF-1400 DHRF-1600
DHR-450SS DHR640SS, DHR800SS, DHR950SS, DHR1100SS, DHR1250SS, DHR1450SS DHR1600SS
Wilson Dairy Water Heaters (Copper or Stainless Steel) ECOPHP / Rapid Flow / D-Series
ECOHP-0315 ECOHP-0400 ECOHP-0500 ECOHP-0630 ECOHP-0800 ECOHP-1000 ECOHP-1260 ECOHP-1500
RF0315 RF0400 RF0500 RF0630 RF0800 RF1000 RF1260 RF1360 RF1500 RF1600 RF1800 RF2000
D2, D3, D4, D5, D6, D7, D8
D2/T, D3/T, D5/T, D6/T, D7/T, D8/T
(All hard wired electrical items must be installed by a licenced electrician)
